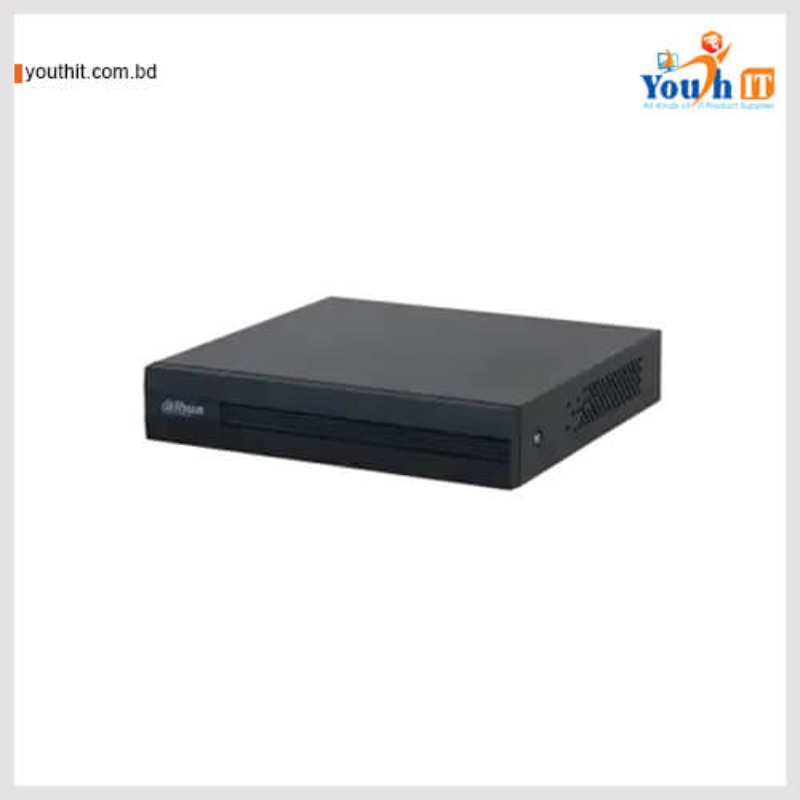

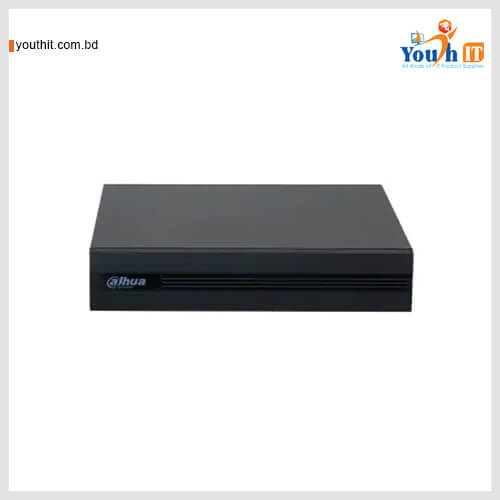

DAHUA DH-XVR1B04-I 4-CHANNEL DIGITAL VIDEO RECORDER

  • In Stock

  • 0 Review(s)

  • New

Price :

৳3.750.00 ৳4.125.00

Color :

Product SKU: 10000232

Report This Item

  1. Model: DH-XVR1B04-I
  2. Video Compression: AI Coding/ H.265+/ H.265/ H.264+/ H.264
  3. Audio sample speed: 8KHz, 16 bit/channel
  4. Max 5 channels IP camera inputs
  5. Up to 4 channels video stream

Specification

System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Audio And Video
IP Camera Input
4+1 channels, each channel up to 2MP
Two-Way Talk
Reuse audio in/out, RCA
Display

Interface

1 HDMI; 1 VGA
Resolution
1920 × 1080, 1280 × 1024, 1280 × 720
Multi-Screen Display
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
OSD
Camera title; Time; Video loss; Camera lock; Motion detection; Recording
Recording
Compression
 AI Coding/H.265+/H.265/H.264+/H.264
Resolution
1080N; 720p; 960H; D1; CIF
Record Rate
Main Stream: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps)
Sub stream: CIF (1~15 fps)
Bit Rate
32 kbps–4096 kbps per channel
Record Mode
Manual; Schedule (General, Continuous); MD (Video
detection: Motion Detection, Video Loss, Tampering);
Alarm; Stop
Record Interval
1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Video Detection And Alarm
Trigger Event
 Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm Input
N/A
Relay Output
N/A
Playback And Backup
Sync Playback
 1/4
Search Mode
Time/Date; Alarm; MD and Exact Search (accurate to second)
Playback Function
Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode
USB Device/Network
Third Party Support
Third Party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Network

 Interface

1 RJ-45 Port (100 Mbps)
Network Function
HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Maximum User Access
128 users
Smart Phone
iPhone; iPad; Android
Interoperability
ONVIF 16.12, CGI Conformant
Storage
Internal HDD
1 SATA port, up to 6 TB capacity
eSATA
N/A
Auxiliary Interface
USB
2 USB ports (USB 2.0)
RS232
N/A
RS485
N/A
Power
Power SupplyDC 12 V/1.5 A
Power Consumption
< 7 W
Component Environment
Operational Conditions
–10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH)
Storage Conditions
–20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH)
Construction
Dimensions
Cooper 1U, 198 mm × 202.9 mm × 41.5 mm (7.81'' × 7.99'' × 1.63'')
Net Weight
0.57 kg (1.25 lb)
Gross Weight
1.08 kg (2.38 lb)
Warranty
 Manufacturing Warranty
 01 Year Warranty
